Product Description:

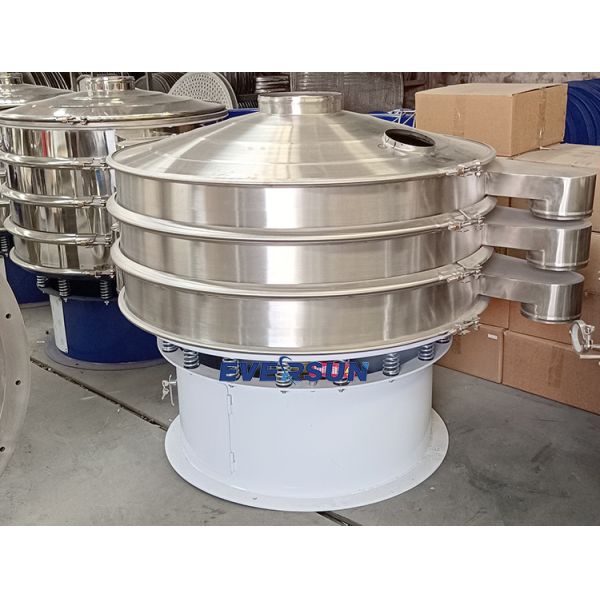

Vibratory Sifter is a kind of high-precision fine powder screening machine, works by the upright motor as vibration source, installed on both ends of the motor on the eccentric hammer, the motor rotation movement into horizontal vertical slope of three dimensional movement, then pass the movement to the screen surface. Vibratory Sifter is widely used in chemical, pharmaceutical, food, ceramic, metallurgy, pollution treatment and other industries. It is capable of screening and sorting particles ranging from 0.3-20m2 of screen area with 1-5 layers, and the capacity can reach 0.1-20t/h. It is also equipped with various types of screening mesh, such as stainless steel mesh, carbon steel mesh, etc., and available in voltage of 220V/380V/440V/Customized.
The vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The material sieve drip line is long and the screen specifications are more. It has the advantages of reliable structure, strong vibration force, high screening efficiency, small vibrating noise, strong durability, convenient maintenance, safe use, etc. It is an ideal powder sieving machine for various industries. The round vibrating screen is generally used for screening and grading of coal, gravel, sand and other materials. It has the characteristics of low noise, high efficiency, small size and fast screen changes.
Technical Parameters:
| Model | Equipment diameter | Power(KW) | Deck | Effective screening area(m2) | Screen mesh |
| YS-600 | 600mm/24inch | 0.25 | 1-5 | 0.2289 | 20 microns to 20 mm |
| YS-800 | 800mm/32inch | 0.55 | 0.4183 |
| YS-1000 | 1000mm/40inch | 0.75 | 0.6359 |
| YS-1200 | 1200mm/48inch | 1.1 | 0.9499 |
| YS-1500 | 1500mm/60inch | 1.5 | 1.5386 |
| YS-1800 | 1800mm/70inch | 3 | 1-4 | 2.2687 |
| YS-2000 | 2000mm/78inch | 4.5 | 2.8893 |
Features:
1. Efficient Particle Separation: Vibratory sifters are highly efficient in separating particles based on their size. The vibration produced by the sifter causes the material to move rapidly across the screen surface, allowing smaller particles to pass through the sieve openings while larger particles are retained. This results in a precise classification of particles and ensures accurate separation.
2. High Throughput: Vibratory sifters are capable of handling high volumes of material, making them suitable for applications that require large-scale particle separation. The continuous vibration and movement of the material across the screen surface enable a high throughput rate, improving overall productivity.
3. Versatility: Vibratory sifters are versatile and can be used for a wide range of materials, including powders, granules, and other solid particles. They are compatible with various industries, such as food processing, pharmaceuticals, chemicals, and cosmetics. The sifter can be easily customized with different screen sizes and configurations to suit specific application requirements.
4. Gentle Material Handling: Vibratory sifters offer gentle handling of delicate or fragile materials. The vibratory motion is typically gentle enough to prevent damage or degradation of the particles, ensuring the integrity of the material throughout the screening process.
Applications:
The EVERSUN YS vibratory sifter is widely used for powder screening in many fields such as food industry, chemical industry, mining industry, metallurgy industry, etc. It is an ideal and efficient screening machine for granular, powder, mucus and other materials. It has a compact structure, small volume, low noise, easy operation, convenient maintenance and high screening efficiency. It is an ideal choice for various industries, especially for the powder screening process.
EVERSUN YS vibratory sifter is the perfect solution for your powder screening needs. It has a low-noise operation, reliable performance, and is suitable for a variety of materials. It is also easy to maintain and has a long service life. With its high accuracy and strong adaptability, this powder vibrating sieve machine is the ideal choice for your powder screening needs.
Support and Services:
We provide technical support and service for the Vibratory Sifter. Our technical support team is available to answer any questions and provide assistance with installation, operation, and maintenance. We also offer a comprehensive range of spare parts, accessories, and consumables to keep your Vibratory Sifter running in top condition. Our customer service team is available to help with any product-related issues and to provide additional support and information. You can contact us by phone, email, or online chat.
Packing and Shipping:
Packaging and Shipping for Vibratory Sifter
The vibratory sifter is packed and shipped in a strong and durable container, to ensure the safe transportation of the product. The container is equipped with handling points for easy transport. All fragile components are securely fastened to the inside of the container to prevent any damage during the shipment. The package also includes the necessary documents, such as the instruction manual and product certificate.
